HäKo - The Hänchen configurator for hydraulic cylinders
Configure your drive online
Do you know exactly what you need? Then simply configure your products yourself:
- Hydraulic cylinder and Standard cylinder DIN/ISO
- Test actuator
- Clamping units
- Tools and mounting elements
Our product configurator will help you find the perfect solution for the requirements of your industry. And if you have any further questions, we will be happy to advise you personally.
- Available online
- Flexibility in the selection
- Large variety of variants

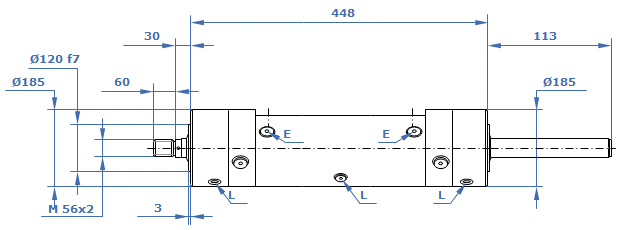

- Dimensional sheets
- 3D data can be requested
- Technical information
- Simple
- Diverse parameters to choose from

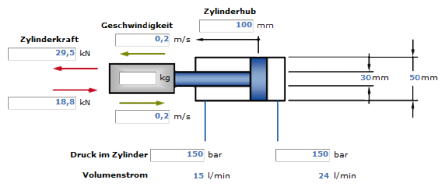

- Design and calculation tools
- Recommendations for the equipment
- Direct
- Data sheets and technical information
- Price request for your configuration
- 3D CAD data within a few hours
- Practical
- Flexibility thanks to countless variants
- Tailor-made and still affordable
- Extended standard range – no prototype risk
- The right engineering drawing for your interface

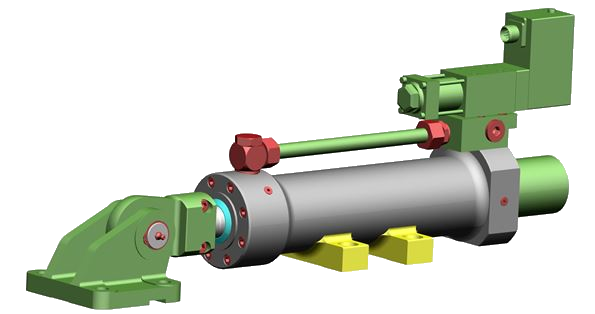

With our Hänchen configurator HÄKo, you will find the right actuator for your application, from the cylinder, sensor technology and hydraulics to mounting parts and useful tools. Furthermore, the online catalogue offers detailed dimension sheets of all Hänchen products.
Before you go to the trouble yourself – save yourself work, time and costs! Because we provide you with the drawings you need in the appropriate CAD export format – quickly and ... free of charge!
One of these interfaces is sure to fit:
3D interfaces: IGES, Siemens NX, Step Version 214, Parasolid Version 13.0
Tutorials for the product configurator

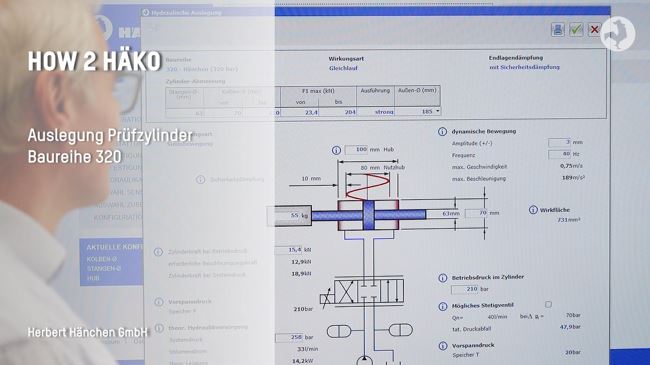

Explanatory videos on the use and design of hydraulic cylinders in HÄKo

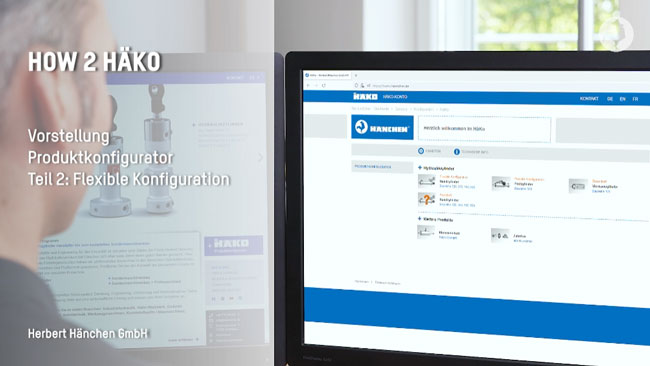

Our explanatory videos on the HÄKo product configurator show you how it works and is structured. Furthermore, we are continuously working on further explanatory videos, for example how a test actuator is designed hydraulically.
