Guiding system piston
Design of hydraulic cylinders

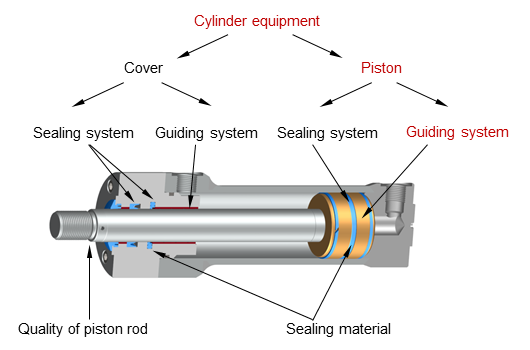

The guiding system on the piston describes the mechanical guiding elements.
| Guide System on the Piston |
T min in °C |
T max in °C |
v max in m/s |
Application |
| Metallic guide | -30 | 200 | 4 | for universal application |
| T min | Minimum temperature |
| T max | Maximum temperature |
| v max | Maximum piston rod speed |
