Guiding system cover
Design of hydraulic cylinders

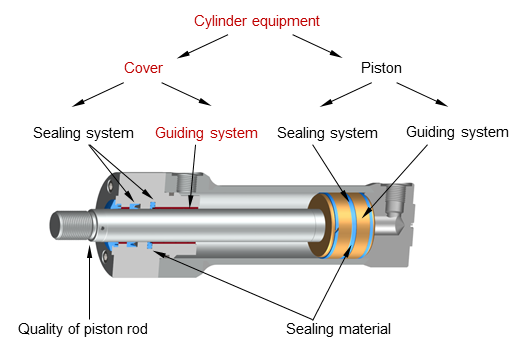

The guiding system on the cover describes the mechanical guiding elements.
|
Guiding system |
T min in °C |
T max in °C |
v max in m/s |
Application |
| permanently integrated synthetic guide Servoslide® |
-30 | 80 | 2 | for movements with low side loads |
| Metallic guide | -30 | 200 | 1 | for "simple" long-stroke movements or at high temperatures |
| PTFE wear rings | -30 | 200 | 4 | For sensitive movements with low friction and high side load |
| Hydrostatic bearing Servobear® |
-30 | 100 | 4 | for frictionless movements with very high side load |
| T min | Minimum temperature |
| T max | Maximum temperature |
| v max | Maximum piston rod speed |
