Disassembly and assembly
Products with magnetostrictive position transducers

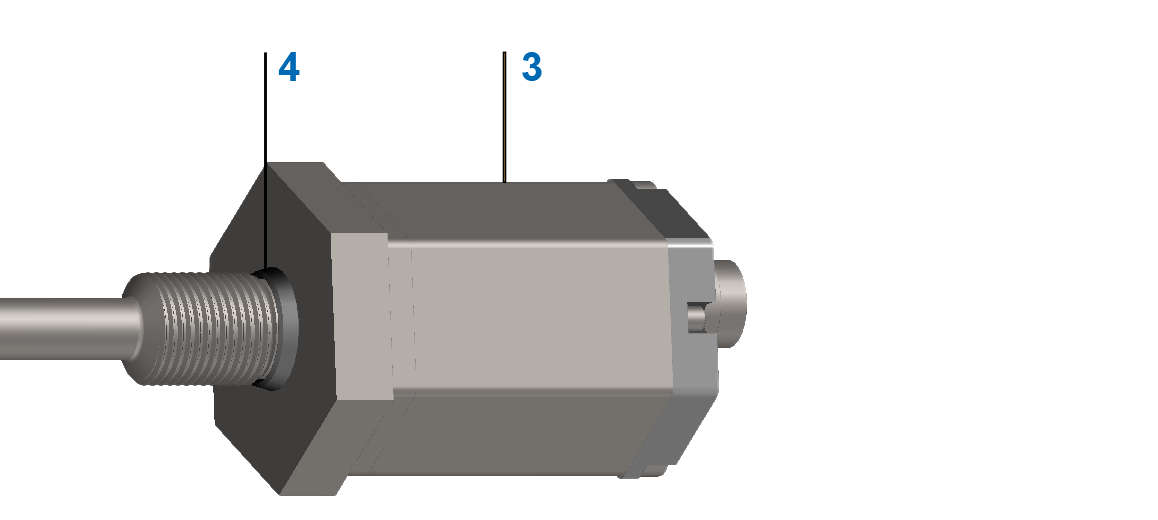

Products with magnetostrictive position transducers
The position transducer is integrated in the cylinder. For this purpose, the measuring rod is located in the hollow-drilled piston rod, and the electronics tube is surrounded by a protection tube.
If necessary, replace the seal (o-ring / flange seal) [4] or the entire position transducer [3].
The magnet installed on the piston rod does not have to be replaced if the position transducer is replaced with an identical one.

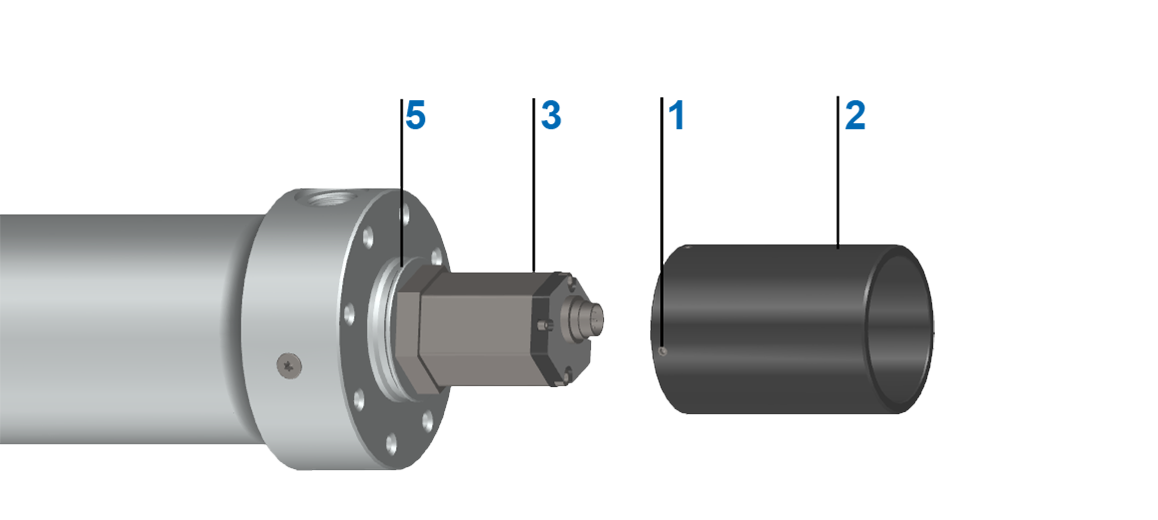

Design open protection tube
with radial threaded pins
|
|
Dismantling the position transducer
- Remove the connector plug of the position transducer.
- Loosen the threaded pins (M5: SW 2.5) [1].
- Carefully remove the protection tube [2].
- Unscrew the position transducer [3] (SW 46) and carefully pull it out of the cover.
Mounting the position transducer
- Fully retract the piston rod into the cylinder.
- Apply screw locking lacquer (medium strength) to the thread of the position transducer.
- Carefully push the position transducer into the cover and ensure that the position transducer is inserted into the bore of the piston rod.
- Tighten the position transducer (tightening torque: 30 Nm, SW 46).
- Ensure that the seal (o-ring / flange seal) [4] is seated correctly.
- Carefully slide the protection tube [2] onto the centering collar [5].
- Moisten threaded pins [1] with screw locking varnish.
- Tighten the threaded pins (tightening torque: 6 Nm, SW 2.5).
- Mount the connector plug.

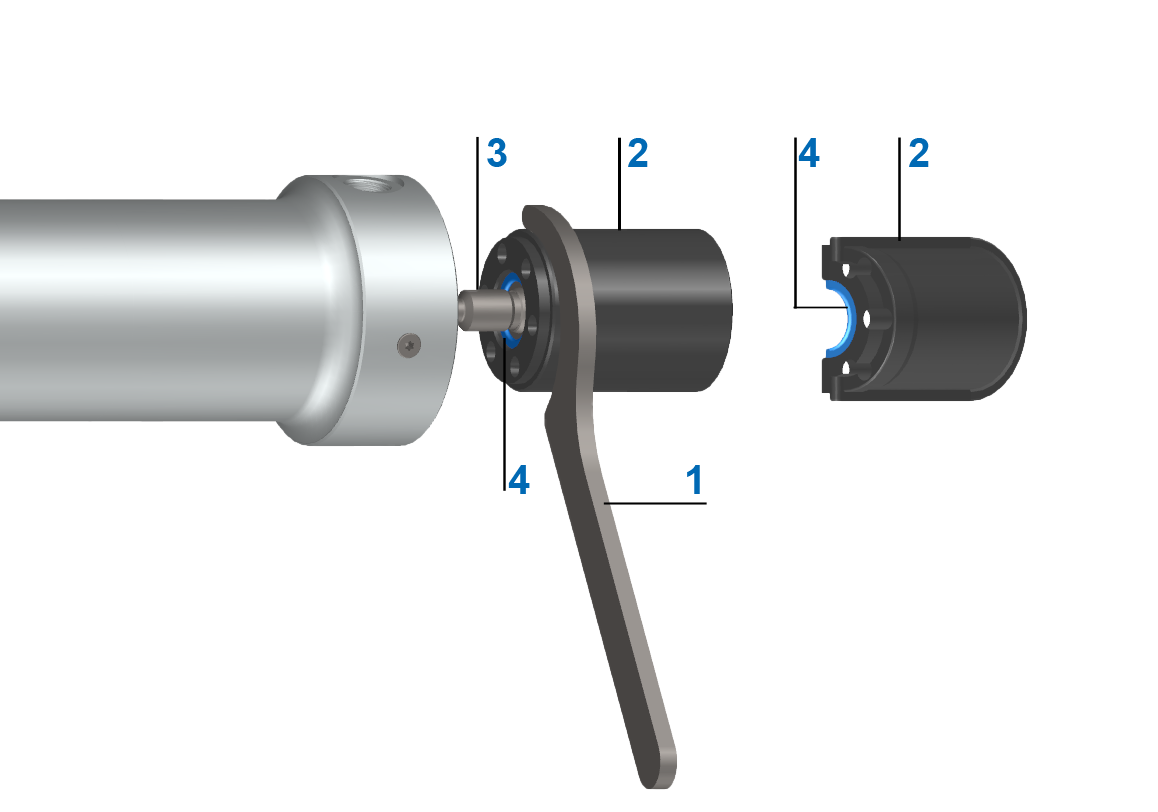

Version with open protection tube
with radial hook wrench holes
The required hook wrench B 68-75 according to DIN 1810 is available from Hänchen. You can find this under Zubehör in our product configurator HÄKO.
|
|
Dismantling the position transducer
- Remove the connector plug of the position transducer.
- Loosen the protection tube [2] with the hook wrench [1].
- Unscrew the protection tube [2] together with the position transducer [3] from the cover.
- Carefully pull the position transducer [3] out of the cover.
Mounting the position transducer
- Fully retract the piston rod into the cylinder.
- Push the position transducer [3] through the centric bore in the protection tube until the hexagon of the position transducer rests on the inner, frontal hexagon centering in such a way that the corners of the hexagon fit into the recesses in the protection tube.
- Insert the flange seal [4] into the centric bore of the protection tube.
- Apply screw locking lacquer (medium strength) to the thread of the position transducer.
- Carefully push the position transducer with protection tube and flange seal into the cover.
- Tighten the position transducer (tightening torque: 30 Nm).
- Use the hook wrench [1] to tighten the protection tube.
- Mount the connector plug.

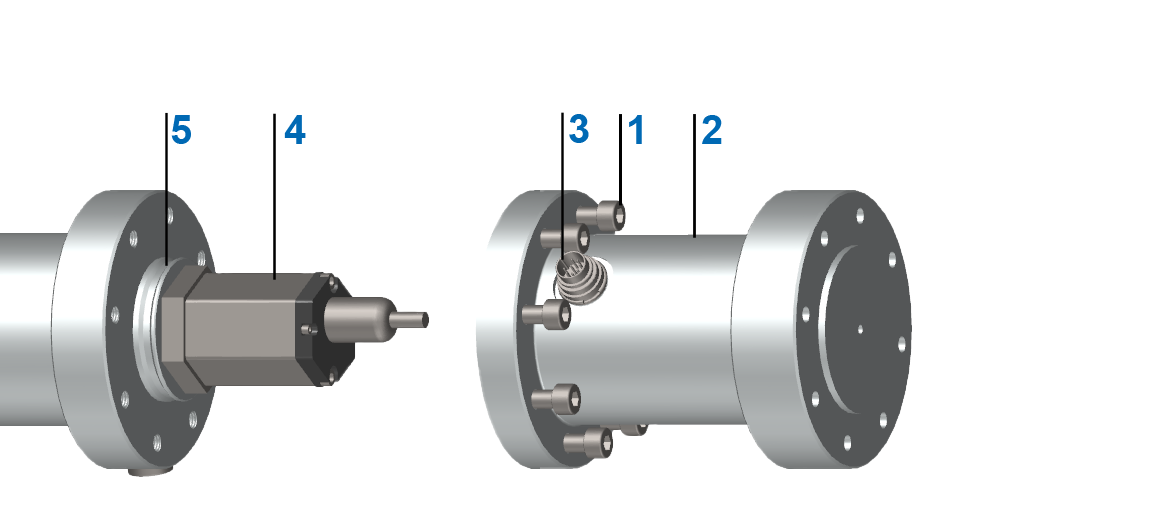

Version with closed protection tube
The version with a closed protection tube offers the possibility of mounting further accessories, such as a spherical rod eye.
The required assembly key is available from Hänchen. You can find it under tools in our HÄKO product configurator.
|
|
Dismantling the position transducer
- Remove the connector plug from the flange connector [3].
- Carefully loosen the nut on the flange connector [3] with a mounting wrench.
- Press the flange connector inwards into the protection tube.
- Loosen and remove the screws [1] on the protection tube.
- Carefully remove the protection tube [2] (pay attention to the connection cable).
- Loosen the position transducer [4] (SW 46) and carefully pull it out of the cover.
Mounting the position transducer
- Fully retract the piston rod into the cylinder.
- Apply screw locking lacquer (medium strength) to the thread of the position transducer.
- Carefully push the position transducer into the cover and ensure that the position transducer is inserted into the bore of the piston rod.
- Tighten the position transducer (tightening torque: 30 Nm, SW 46).
- Ensure that the seal (o-ring / flange seal) is seated correctly.
- Guide the flange connector [3] from the inside through the protection tube [2].
- Fasten the flange connector to the protection tube with a nut (the nose of the flange connector must sit in the recess - anti-torsion mechanism).
- Carefully slide the protection tube onto the centring collar [5].
- Tighten two screws [1] crosswise on the cover.
- Tighten all remaining screws crosswise (observe tightening torques).
- Mount the connector plug.
