Servocop®

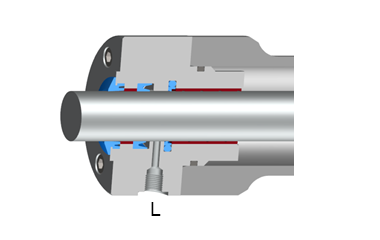

Sealing system cover
The sealing system in the Servocop® cover is suitable for low-friction, sensitive movements. The minimal difference between static and sliding friction ensures largely stick-slip-free movements. Servocop® is also particularly suitable for long-stroke cylinders or when side loads occur.
Seal combination
- Lip seal
- Compact seal
- Wiper ring
Depending on the series, the sealing materials and the guiding system, this system is suitable for:
| Piston speeds | up to 3 m/s |
| Temperature range | from -30 °C to +200 °C |
The functional oil flow into the tank is pressureless at the functional oil port L; it must not - and may not - be extracted with vacuum. A preload of the functional oil line up to 5 bar is permissible.
The functional oil ports must be connected externally.
