Hydraulic cylinder series
Design of hydraulic cylinders
The series is the measure for the nominal pressure of the hydraulic cylinder.

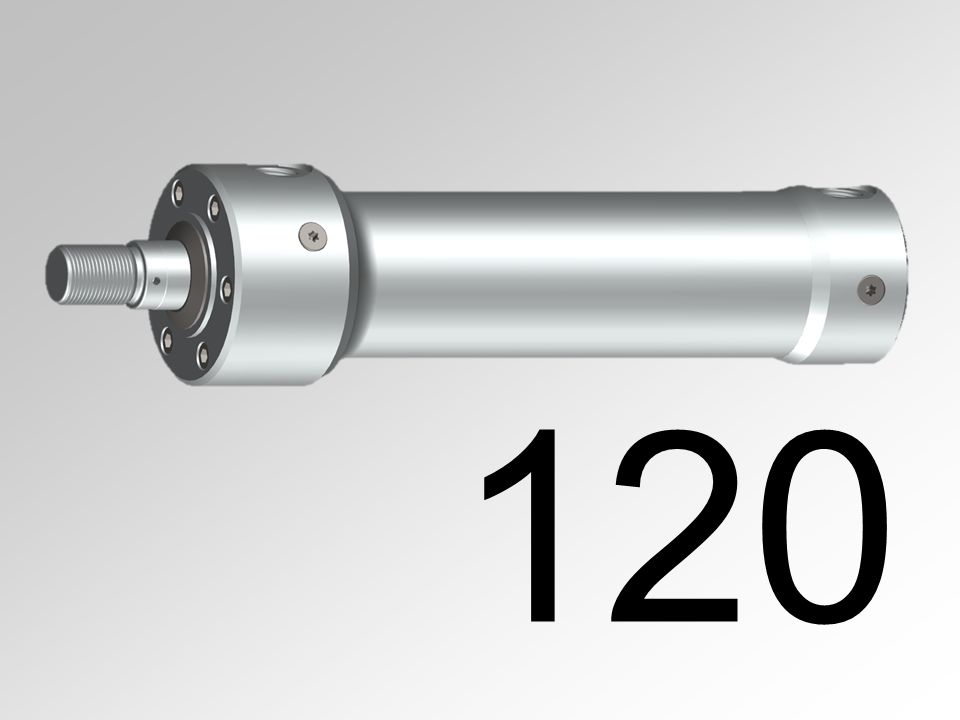

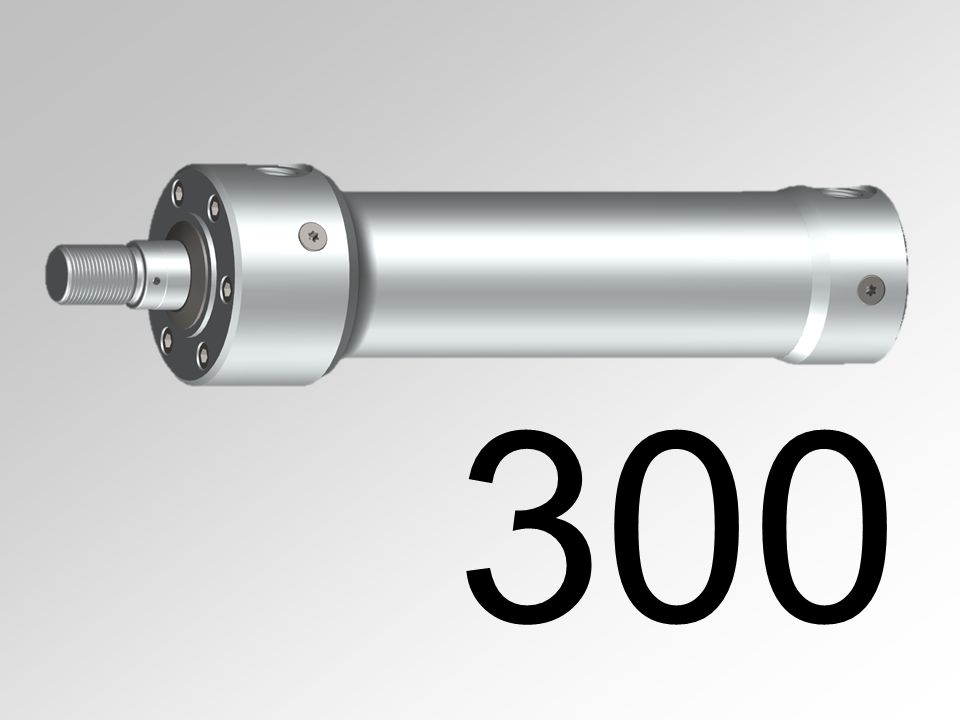

The Hänchen series 120 and series 300 are characterised by a particularly space-saving construction and can therefore make particular use of the advantage of power density.
The series 100, series 160, series 250 and series 660 correspond to the respective standards when selecting the basic sealing system.

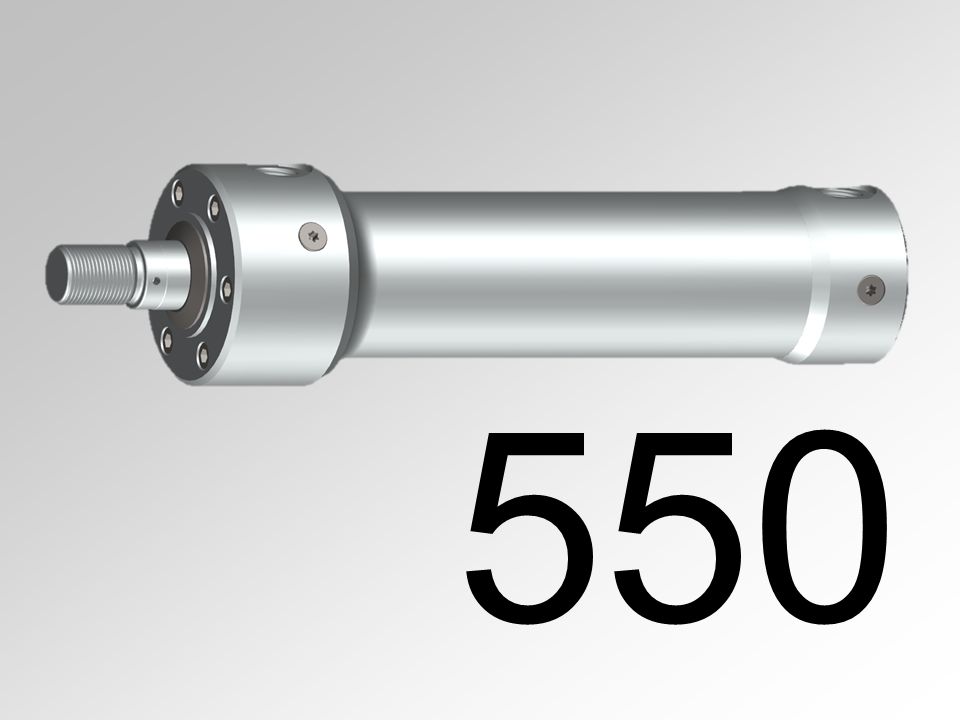

The fitting dimensions of the series 550, such as piston rod thread, flange or spherical plain bearing dimensions, comply with ISO 6022; the basic cylinder itself corresponds to the series 300 with all its advantages.

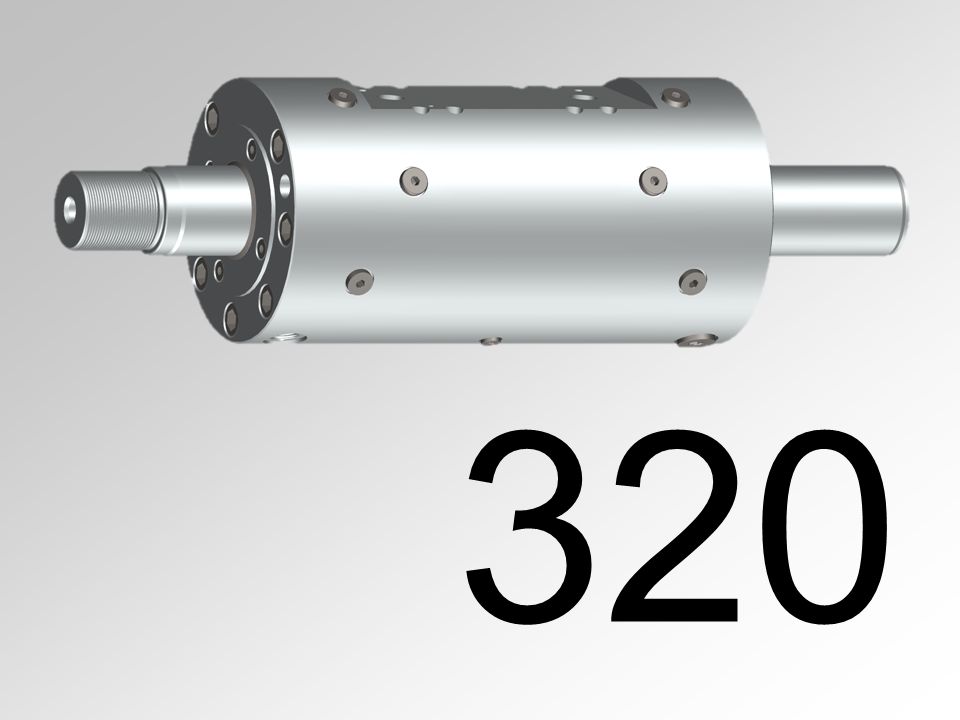

Series 320 designates the test actuator series for highly dynamic applications.
Overview of the series
| Series |  Series 120 |
 Series 300 |

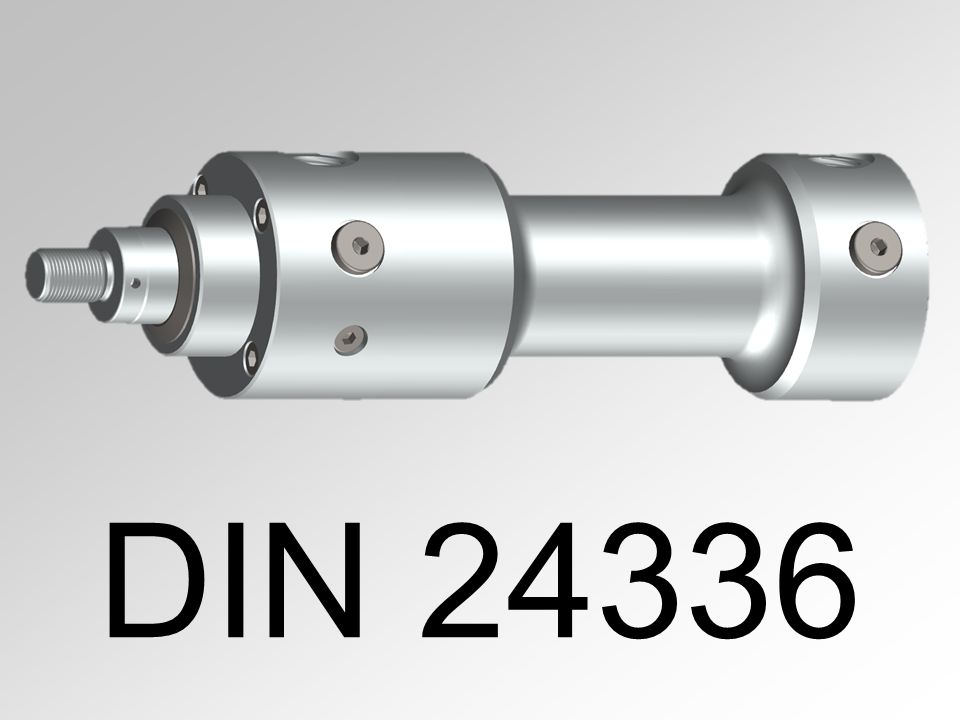

 Series 100 |

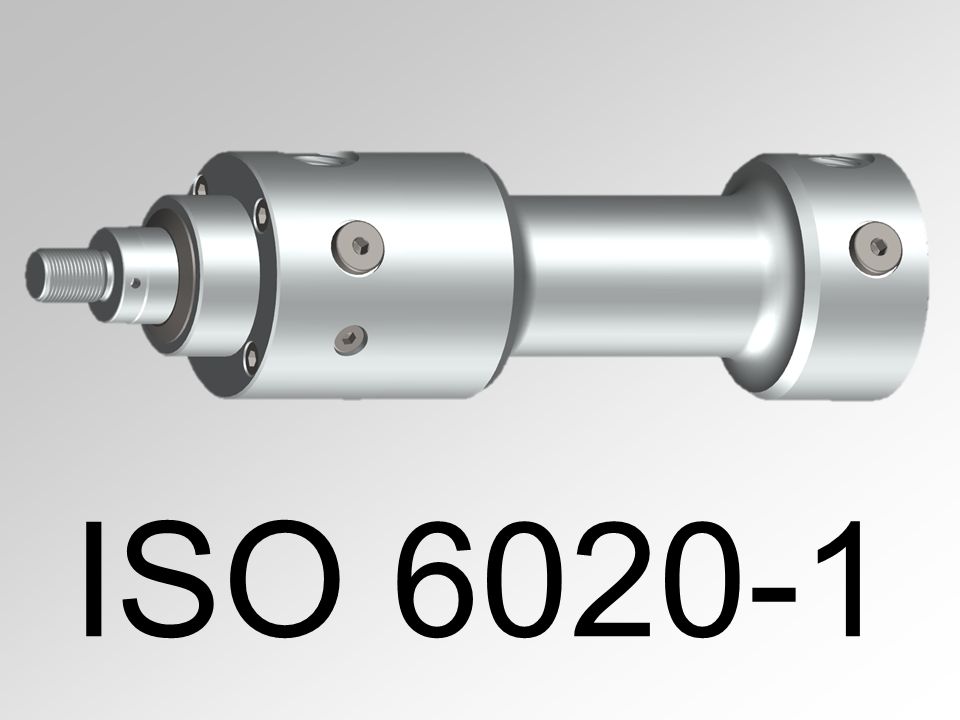

 Series 160 |
| Standard | Hänchen standard | Hänchen standard | DIN 24336 | DIN ISO 6020-1 |
| Max. permissible pressure | 15 MPa 20 MPa |
30 MPa | 10 MPa | 16 MPa |
| configurable in the HäKo | configurable in the HäKo | requestable at Hänchen | configurable in the HäKo |

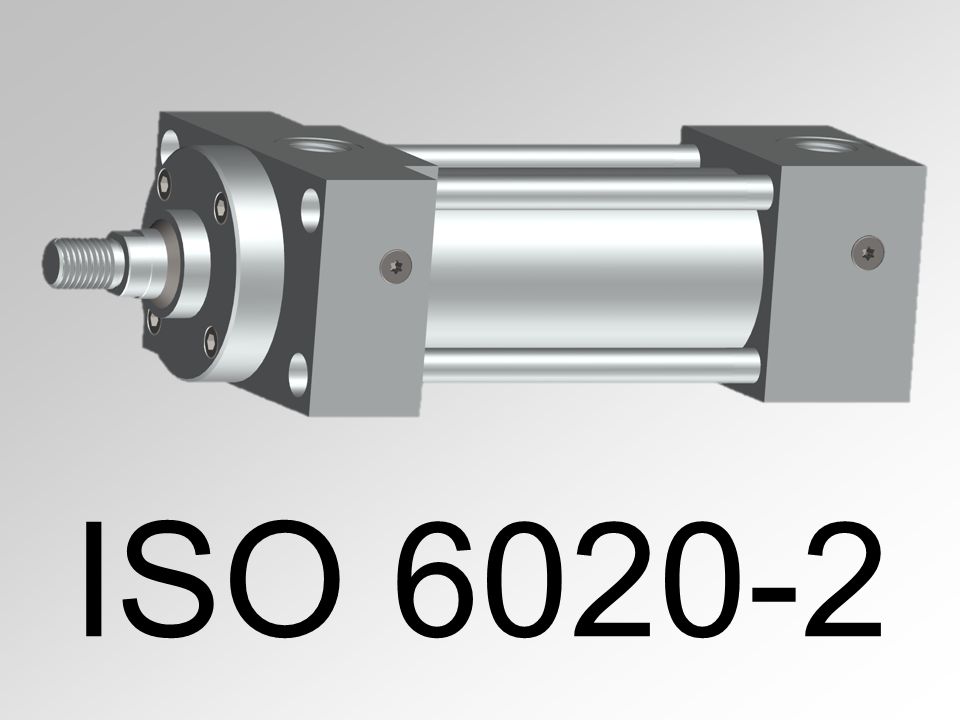

| Series |  Series 660 |

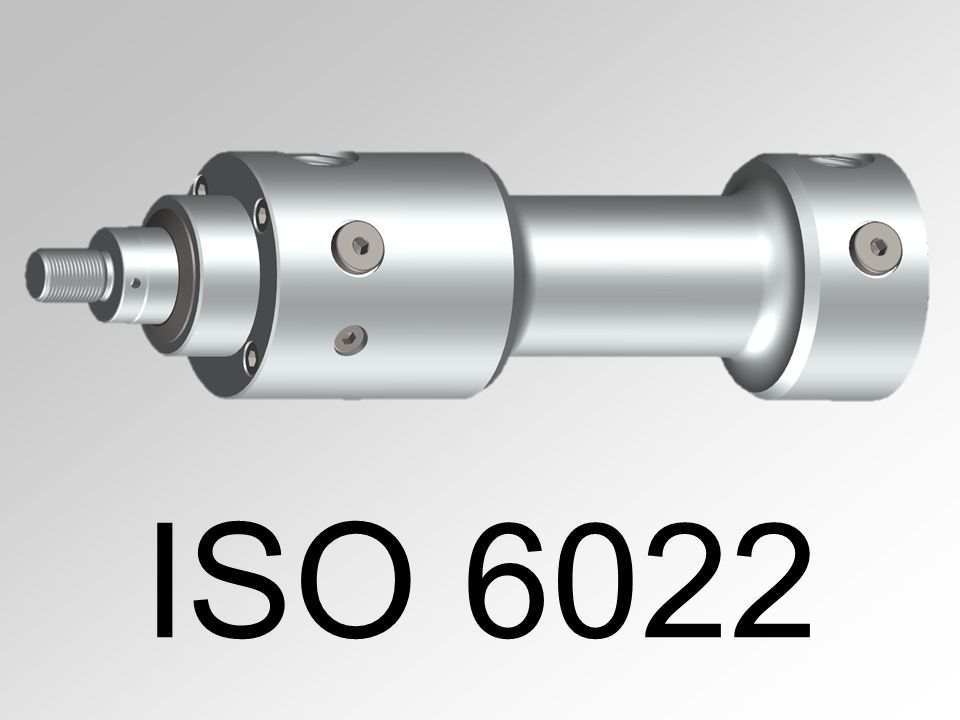

 Series 250 |
 Series 550 |
 Series 320 |
| Standard | DIN ISO 6020-2 | DIN ISO 6022 | Mounting dimensions ISO 6022 | Hänchen test actuator |
| Max. permissible pressure | 16 MPa | 25 MPa | 25 MPa | 32 MPa |
| requestable at Hänchen | requestable at Hänchen | configurable in the HäKo | configurable in the HäKo |
