Calculation
Design of hydraulic cylinders
When designing hydraulic cylinders, the force and speed must be calculated as a function of the existing pressure in the cylinder chamber and the available flow rate.
The permissible values for the working pressure, depending on the pressure series, and the permissible oil speed in the hydraulic ports must be taken into account.

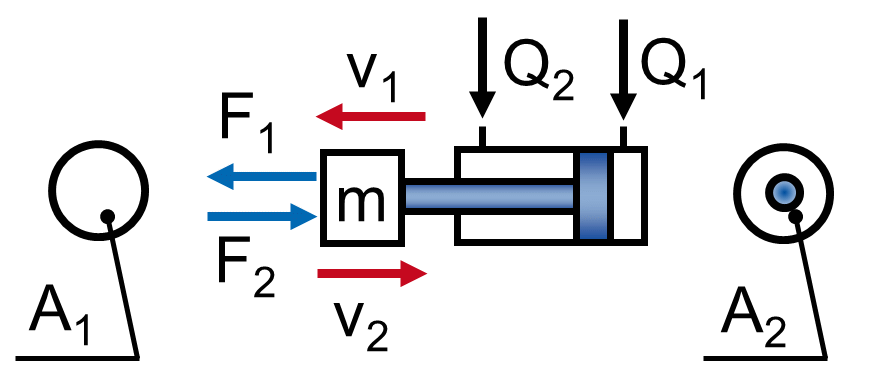

| Formulas for calculating hydraulic cylinders | Single-rod cylinder A2 < A1 |

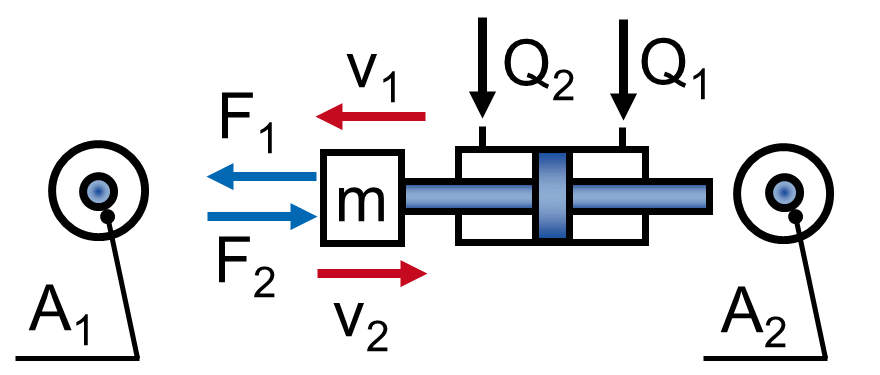

Double-rod cylinder A2 = A1 |
 |
 |
|

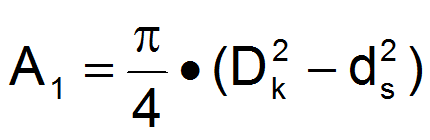

| Working area extend |  |
 |

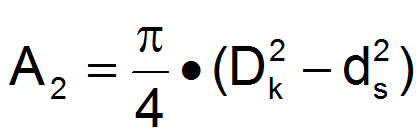

| Working area retraction |  |
 |
| Force during extension |  |
|
| Force during retraction |  |
|
| Flow rate for extension |  |
|
| Flow rate for retraction |  |
|
| Formula symbol | |
| Dk | Bore |
| ds | Piston rod diameter |
| p | Pressure in the cylinder |
| A1, A2 | Working areas of the cylinder |
| F1, F2 | Cylinder compressive and force retracting |
| v1, v2 | Traverse speed |
| Q1, Q2 | Flow rate |
Further calculation formulas for the design of hydraulic cylinders:
Calculation formulas for the design of hydraulic cylinders
Calculation of permissible oil speeds
Calculation of the buckling resistance of hydraulic cylinders
Buckling cases calculation - Mountings of piston rod and cylinder
Calculation of the sine movement of hydraulic cylinders and oscillation cylinders
