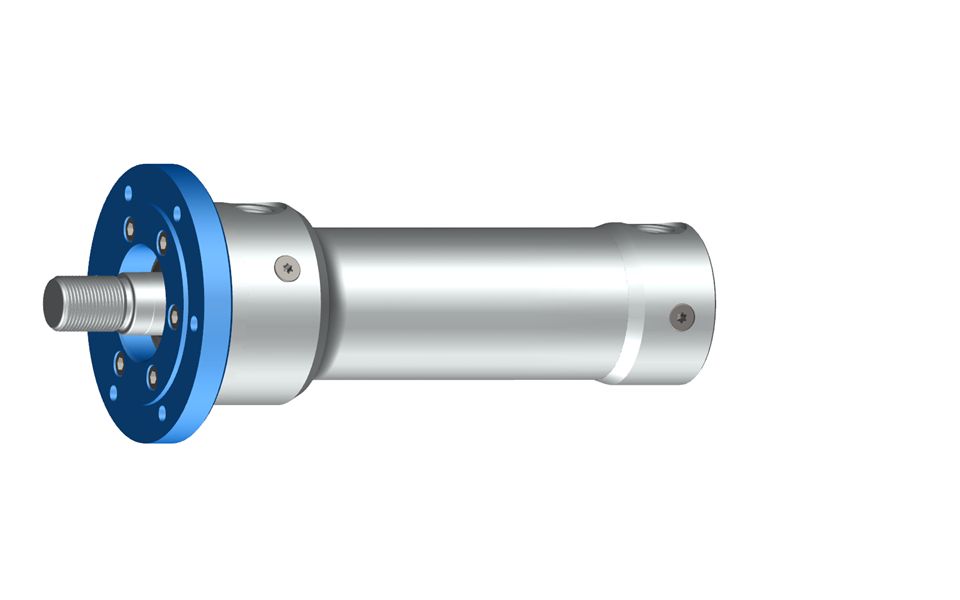

Circular flange head side
Mounting of hydraulic cylinders

The head-side cover, designed as a flange, can be used as a cylinder mounting. The cylinder force is thereby applied centrally to the mounting, so that no side loads occur.

This is a cylinder mounting without degrees of freedom of movement, which enables rigid installation. The flange is provided with a centering collar.

Additional mounting accessories, such as flanges, can be attached to the cylinder.
