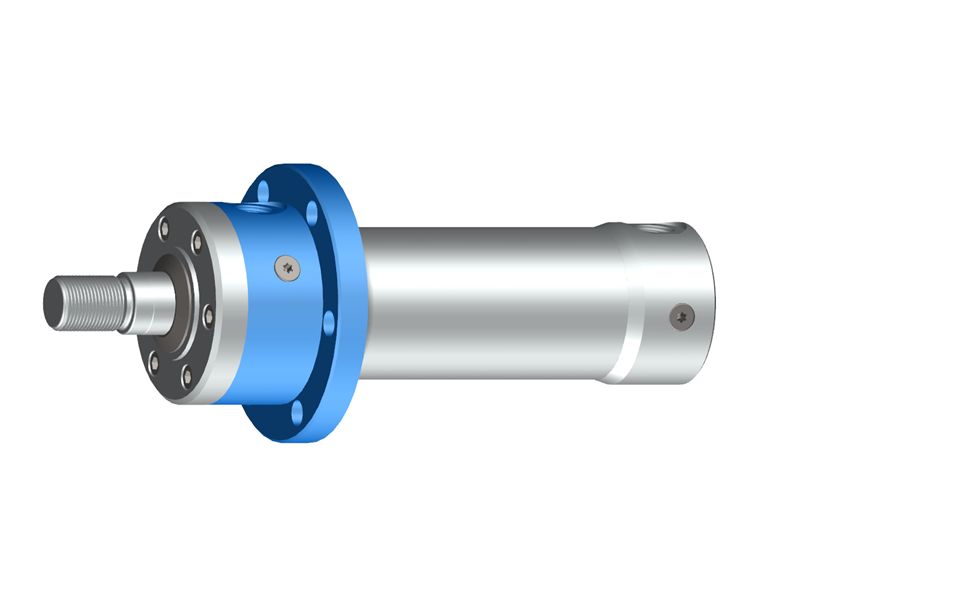

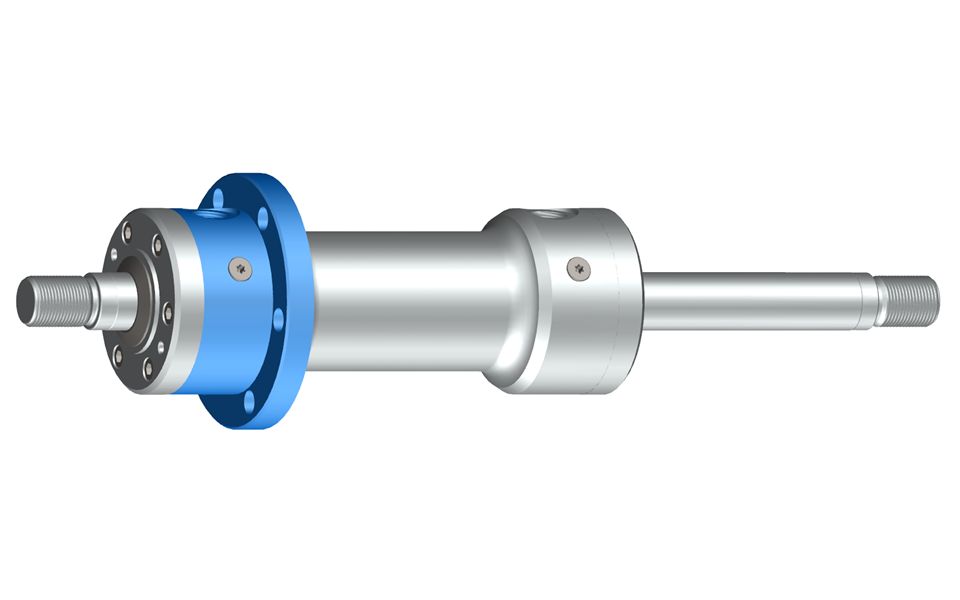

Circular flange on the cylinder body
Mounting of hydraulic cylinders

The flange, mounted in the front area of the cylinder, can be used as a cylinder mounting. The cylinder force is thereby applied centrally to the mounting, so that no side loads occur.

The cylinder can be mounted from both sides. This is a cylinder mounting without degrees of freedom of movement, which enables rigid installation. The flange is provided with centering collars on both sides.

Additional mounting accessories, such as flanges, can be attached to the cylinder.
