Threaded holes on the cap side
Mounting of hydraulic cylinders

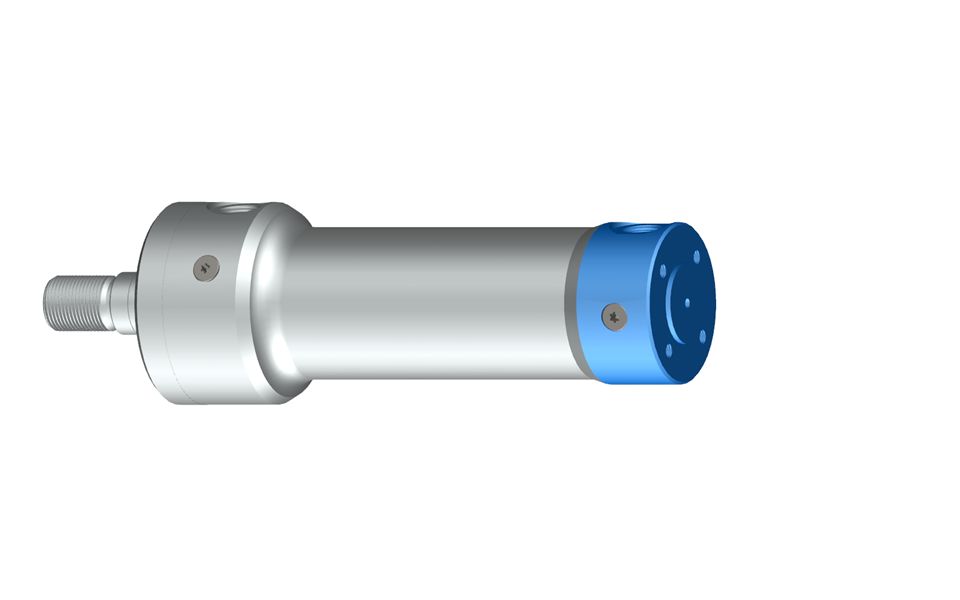

The threaded holes in the cap side cover, arranged on a pitch circle, can be used as cylinder mounting. The cylinder force is thereby applied centrally to the mounting, so that no side loads occur.

This is a cylinder mounting without degrees of freedom, which enables rigid installation. The cover is provided with a centering collar.

Additional mounting accessories, such as flanges, can be attached to the cylinder.
