Trunnions on the cylinder body
Mounting of hydraulic cylinders

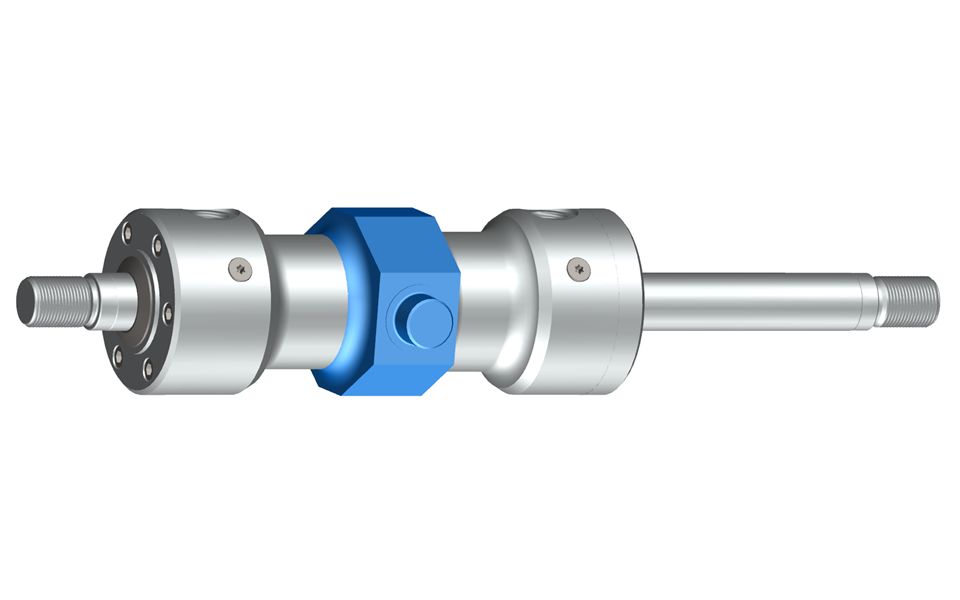

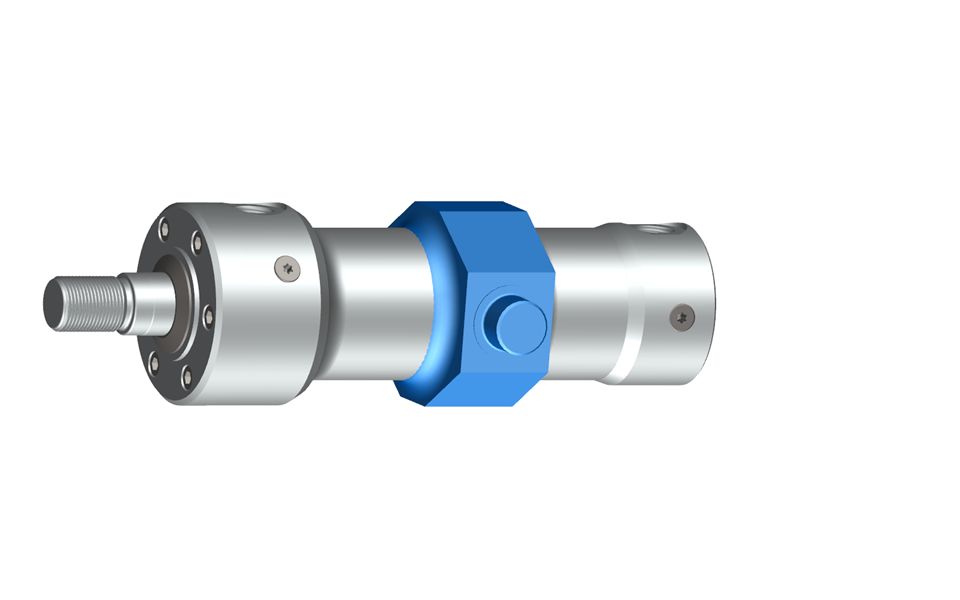

The trunnions welded to the cylinder body can be used as cylinder mounting. The cylinder force is thereby applied centrally to the mounting, so that no side loads occur.

This is a cylinder mounting with one degree of freedom of movement, which enables pivoting installation.

Additional mounting accessories, such as flanges, can be attached to the cylinder.
