Hydraulic port for the hydraulic cylinder

Hydraulic port

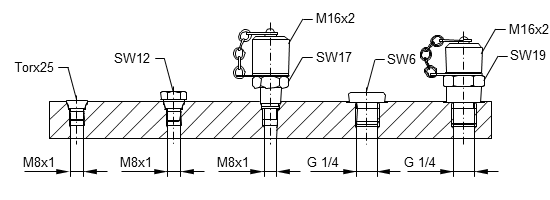

Hänchen cylinders are equipped on both sides with inch pipe thread ports according to ISO 228 part 1 for pressure supply.

Here, screw-in studs according to DIN 3852 Part 2, Form A (with sealing ring according to DIN 3869) or Form B (with sealing edge) can be used.

Venting port

Hänchen cylinders are equipped with vent*s on both sides.
Depending on the cylinder size and series, inch ports G1/4 or metric ports M8x1 are used here.
