Hydraulic port for mounting plate

Valved plates for mounting valves can be attached to cylinders with a hydraulic port for a mounting plate.
Mounting plates with different mounting surfaces can be selected.

The selection of the appropriate mounting surface depends on the servo valve to be mounted and the permissible flow rate.
Recommendations for the permissible flow rate can be found in the following table.

Mounting surface	ISO	DIN	Qmax	Example

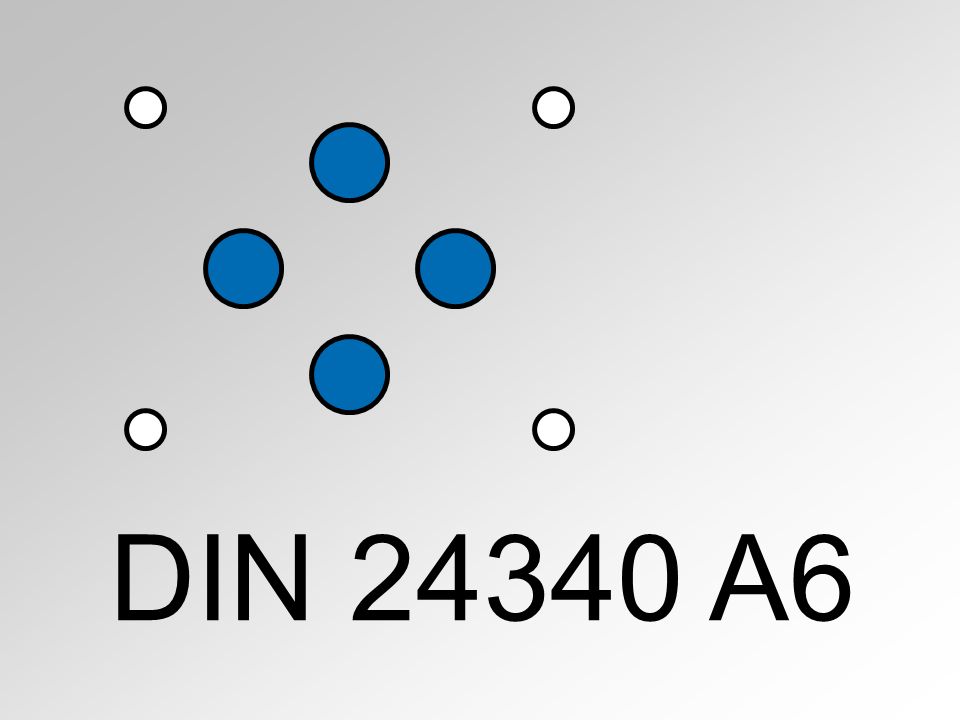

	ISO 4401-03	DIN 24340-A6	40 l/min	NG 6

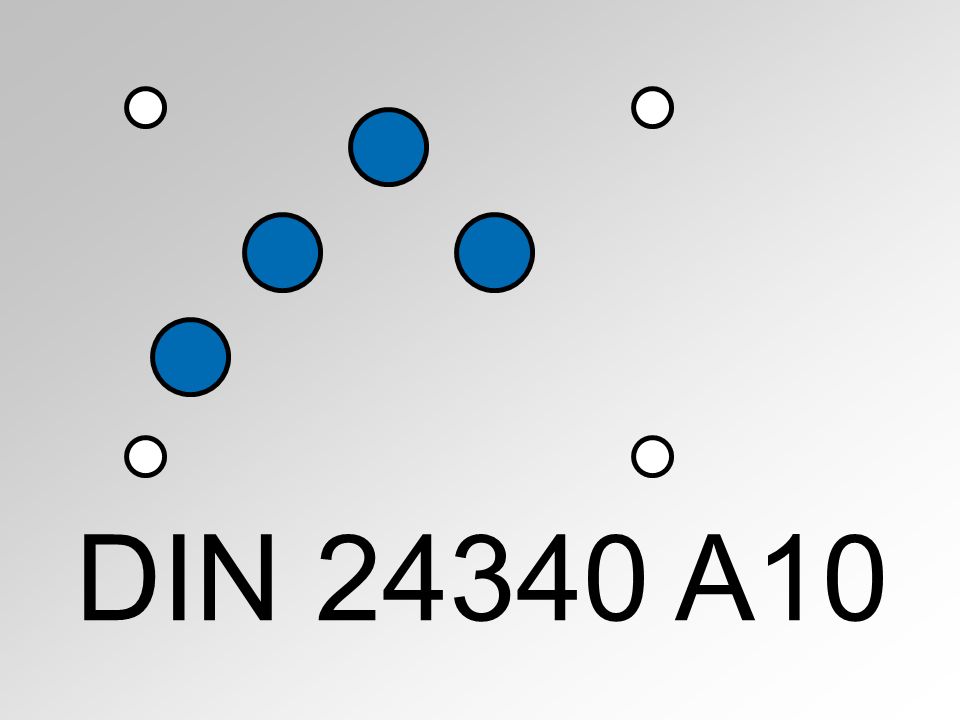

	ISO 4401-05	DIN 24340-A10	100 l/min	NG 10

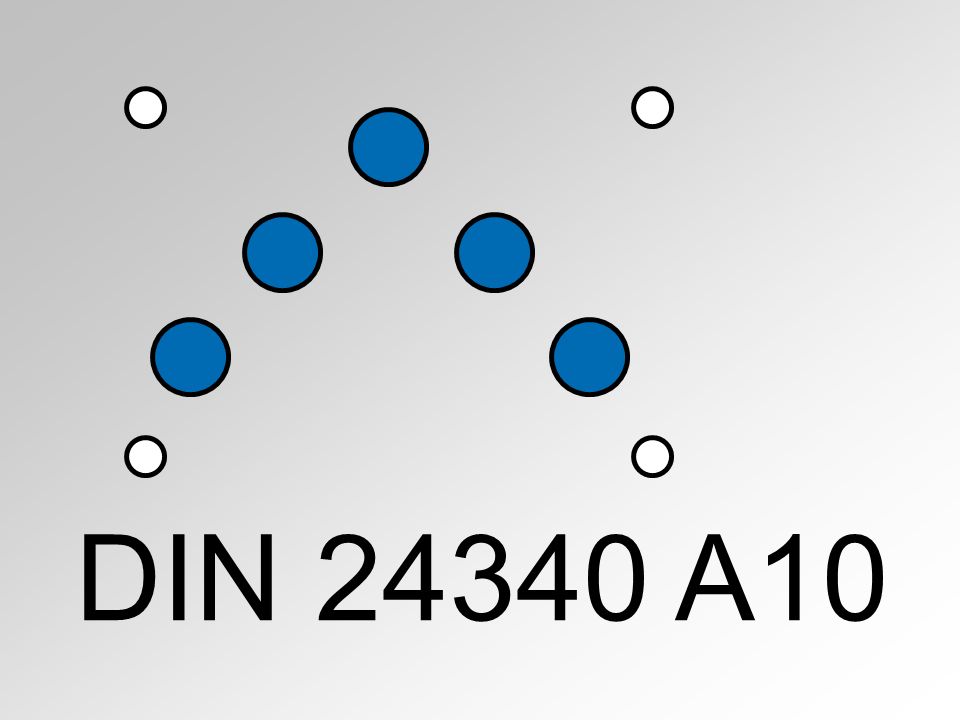

	ISO 4401-05 with T2	DIN 24340-A10 with T2	160 l/min	NG 10

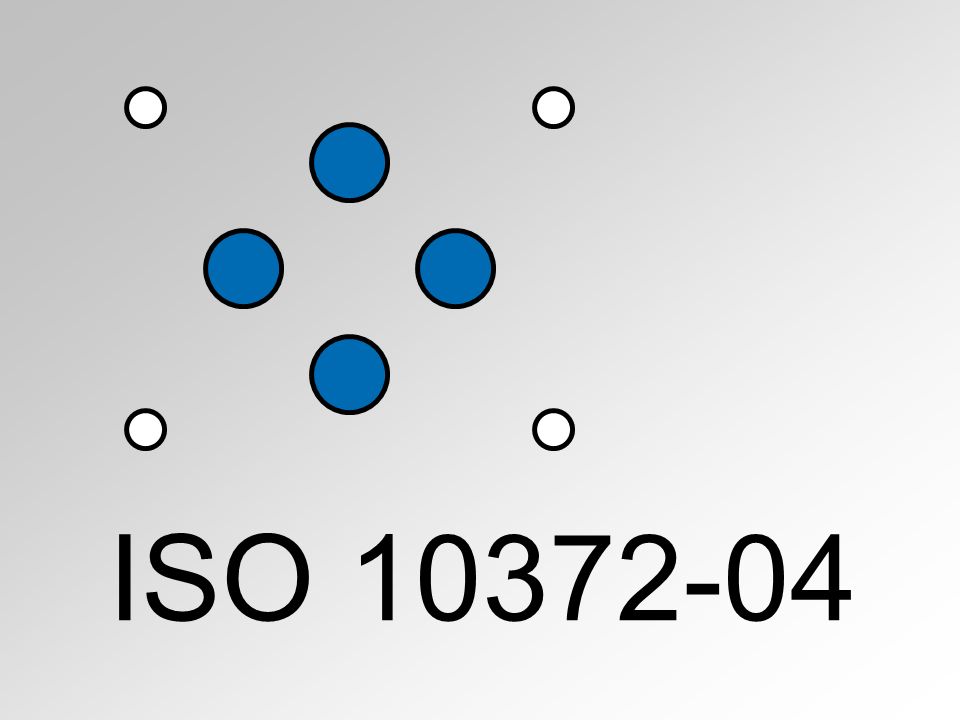

	ISO 10372-04	Moog 76	63 l/min	Moog 76

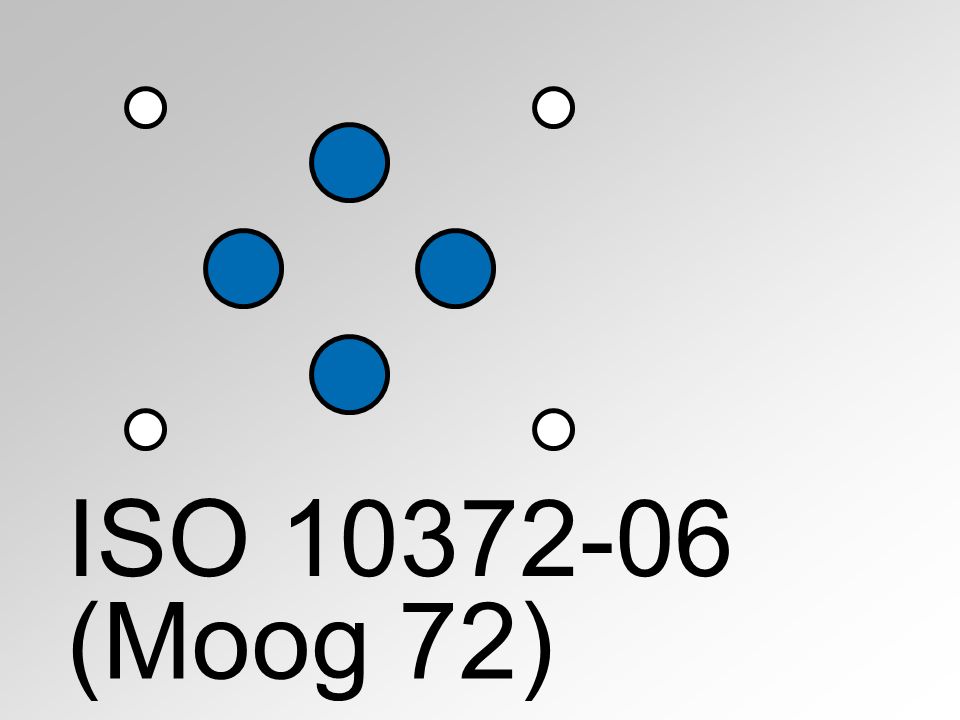

	ISO 10372-06	-	250 l/min	Moog 72

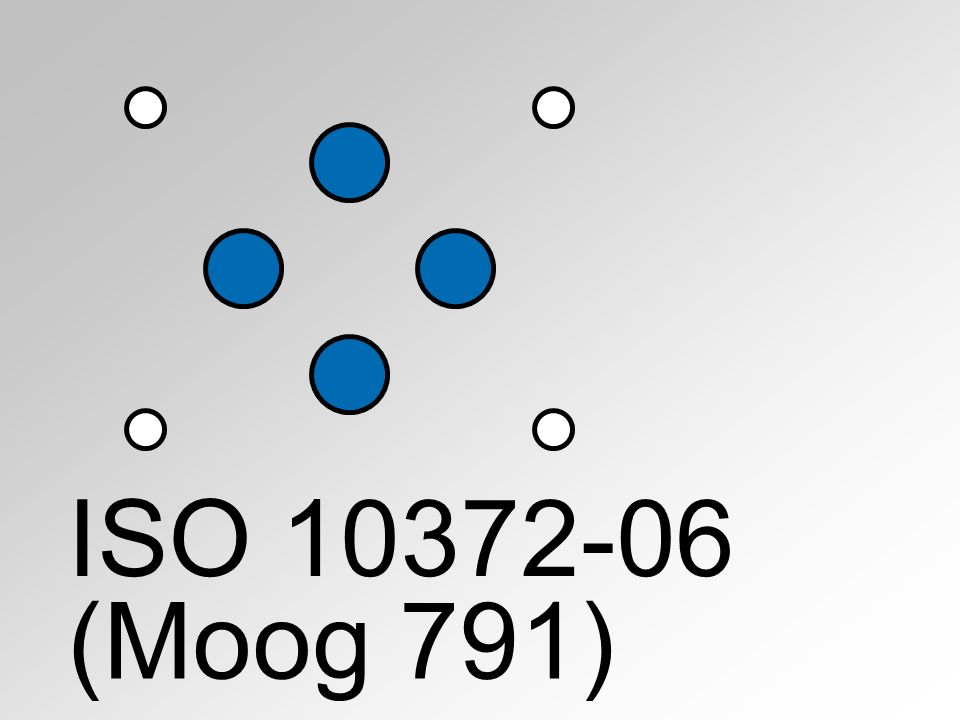

	ISO 10372-06	-	250 l/min	Moog 791
